Ideally combined
AKUSTIKTHERM

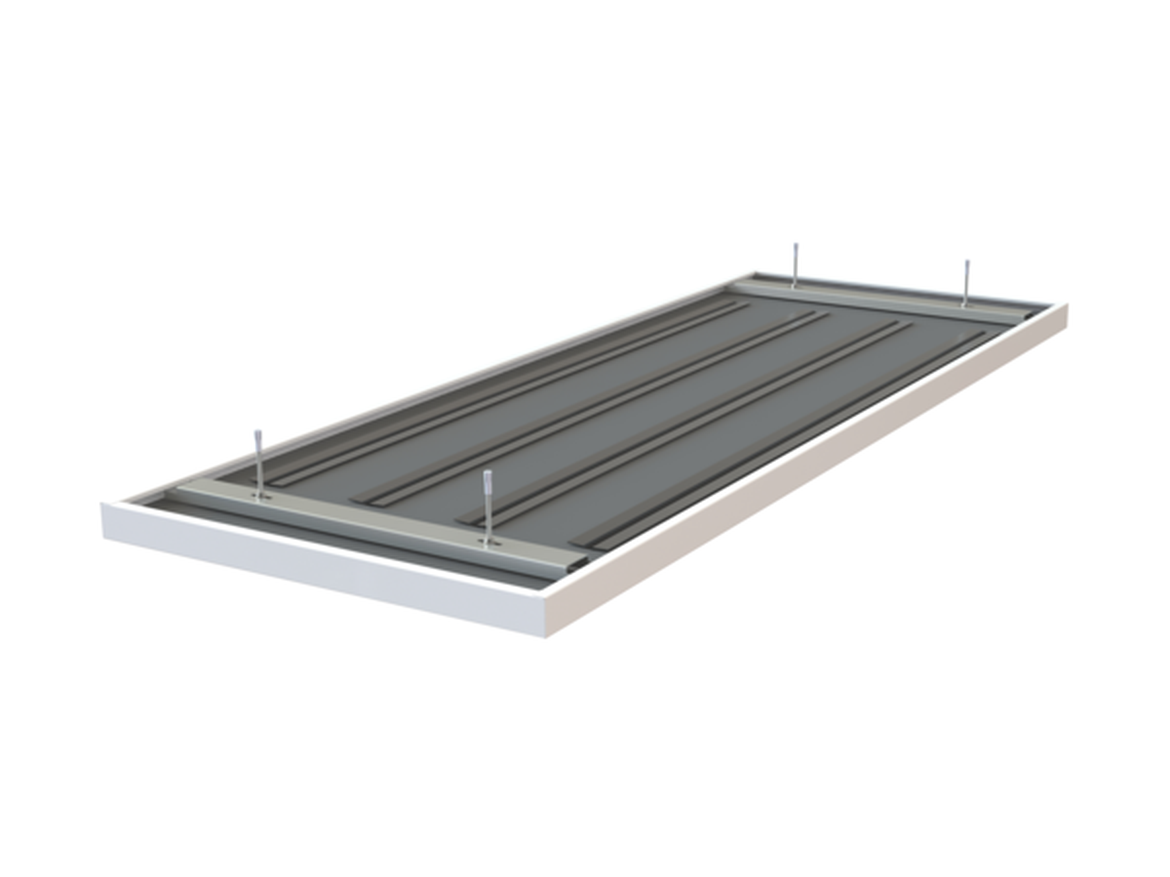

AKUSTIKTHERM is an acoustically effective and thermally conductive ceiling sail system for use in properties with thermally active building systems (TABS). The acoustic sail transfers energy from the concrete surface into the room via heat radiation using an exchange system with a special coating, while at the same time providing expansive sound absorption surfaces.

Whether you want to improve the acoustics in an open-plan office, event room or restaurant, AKUSTIKTHERM is the ideal solution for creating a pleasant acoustic environment and increasing the productivity and satisfaction of your employees, customers or guests.

Energy transfer

The installation of AKUSTIKTHERM sails enables energy to be transferred from the activated concrete ceiling (CCT) into the room. At the same time, the room acoustics are significantly improved.

By using AKUSTIKTHERM sails, between 90 – 94 % of the cooling capacity of the concrete ceiling is transferred into the room with ceiling coverage of 40 – 60 %.

  • Easily retrofitted in properties with thermally active building sytems (TABS)
  • Superior acoustic effectiveness (class A)
  • Very low influence on the thermally active building system during cooling/heating
  • Low installation height
  • No maintenance required
  • Product components can be recycled
  • Components can be integrated
Contact us

Ceiling system

Sail

Operating principle

Type Base Plus: Radiation

Air supply

not relevant

Energy transfer TABS

90 – 94 %

Acoustics

αw: up to 1,0
Sound absorption class A
(EN ISO 11654)

Room comfort

Thermal comfort according to
EN ISO 7730, SIA 382/1
