Powerful integrated

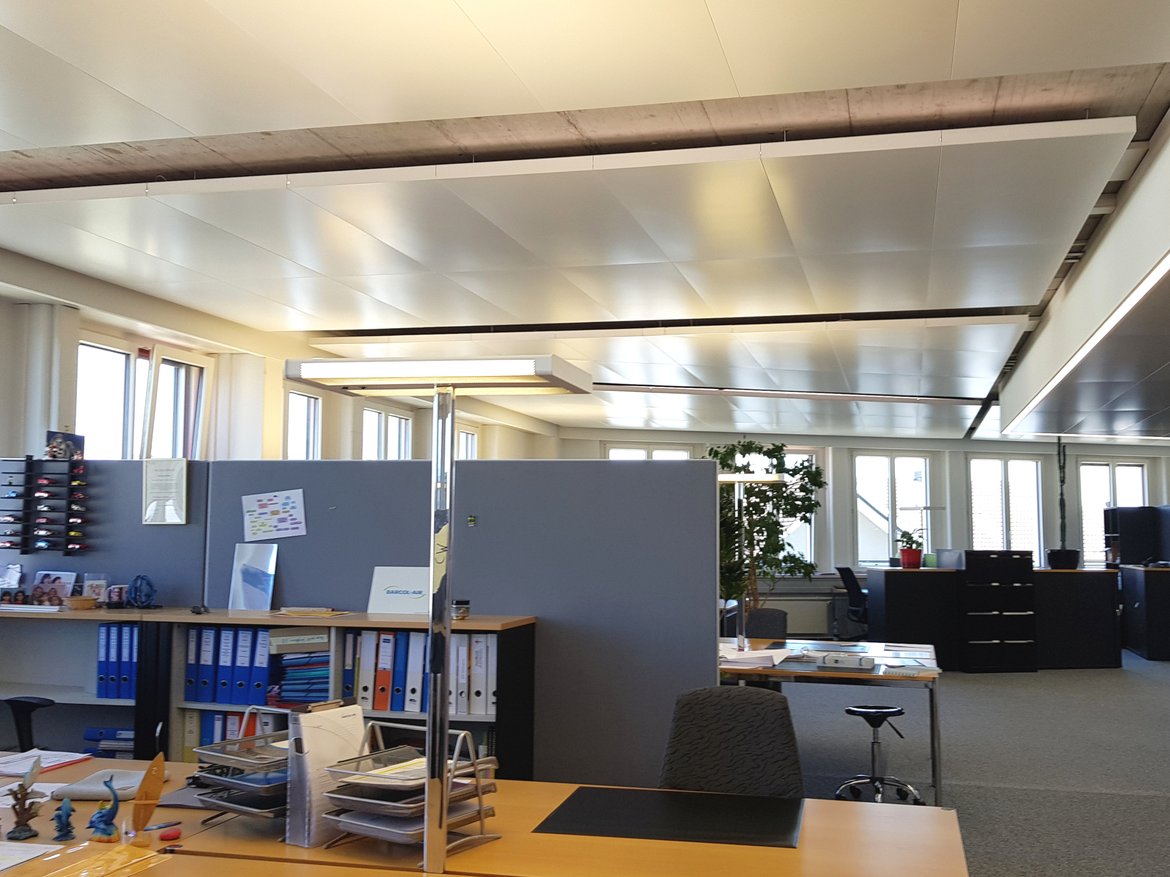

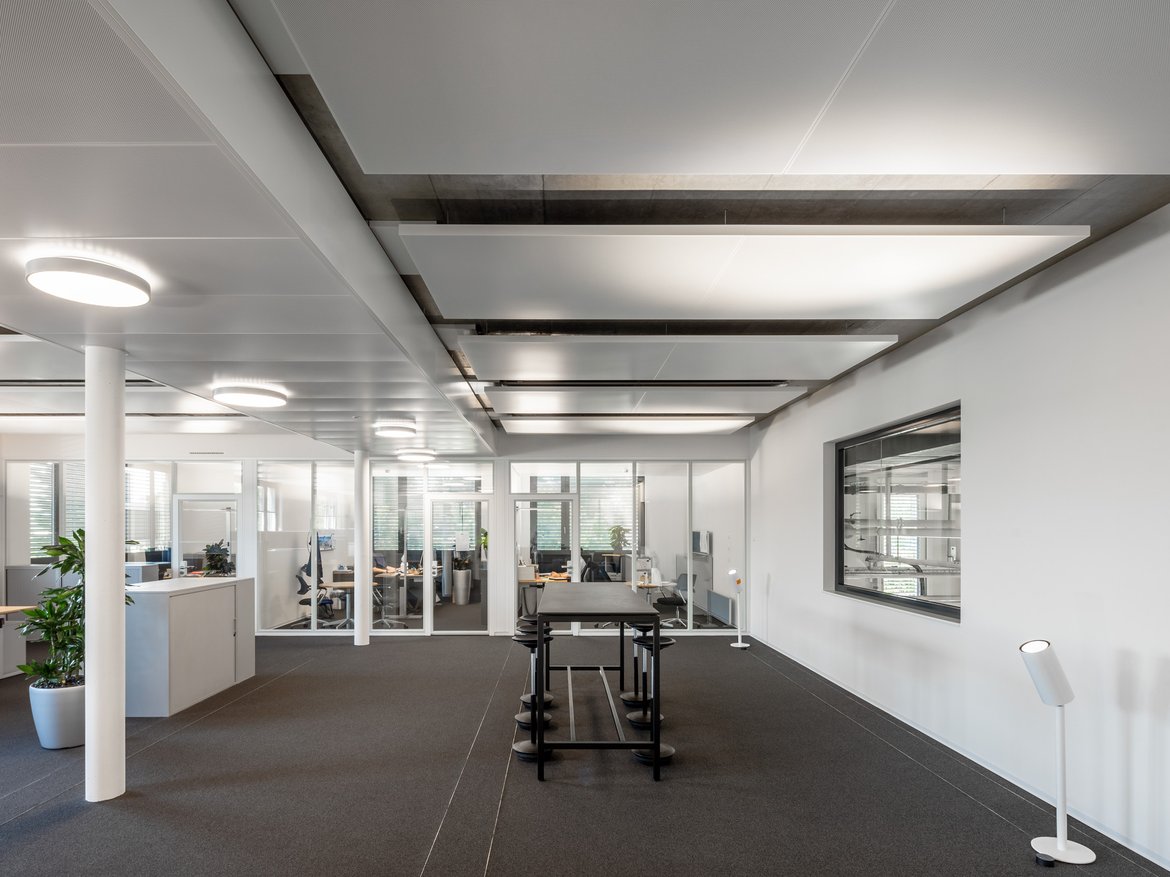

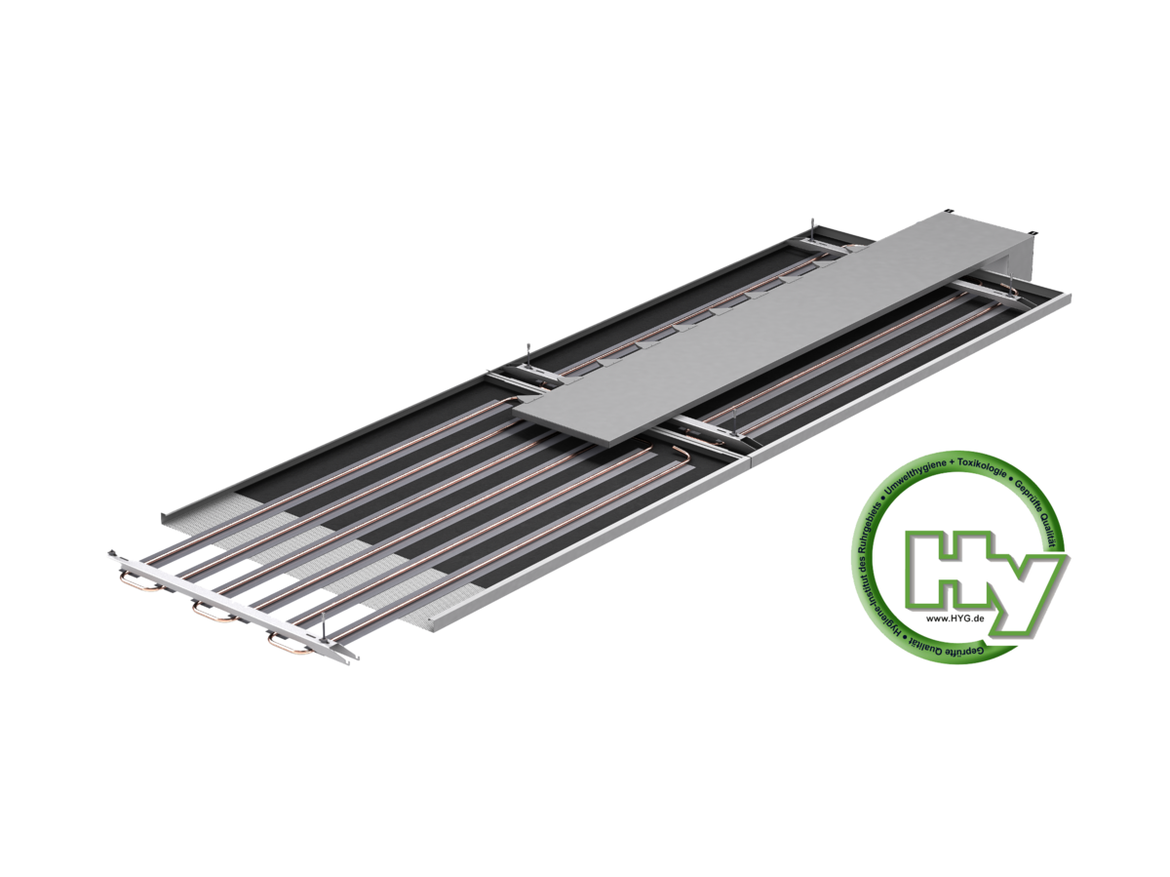

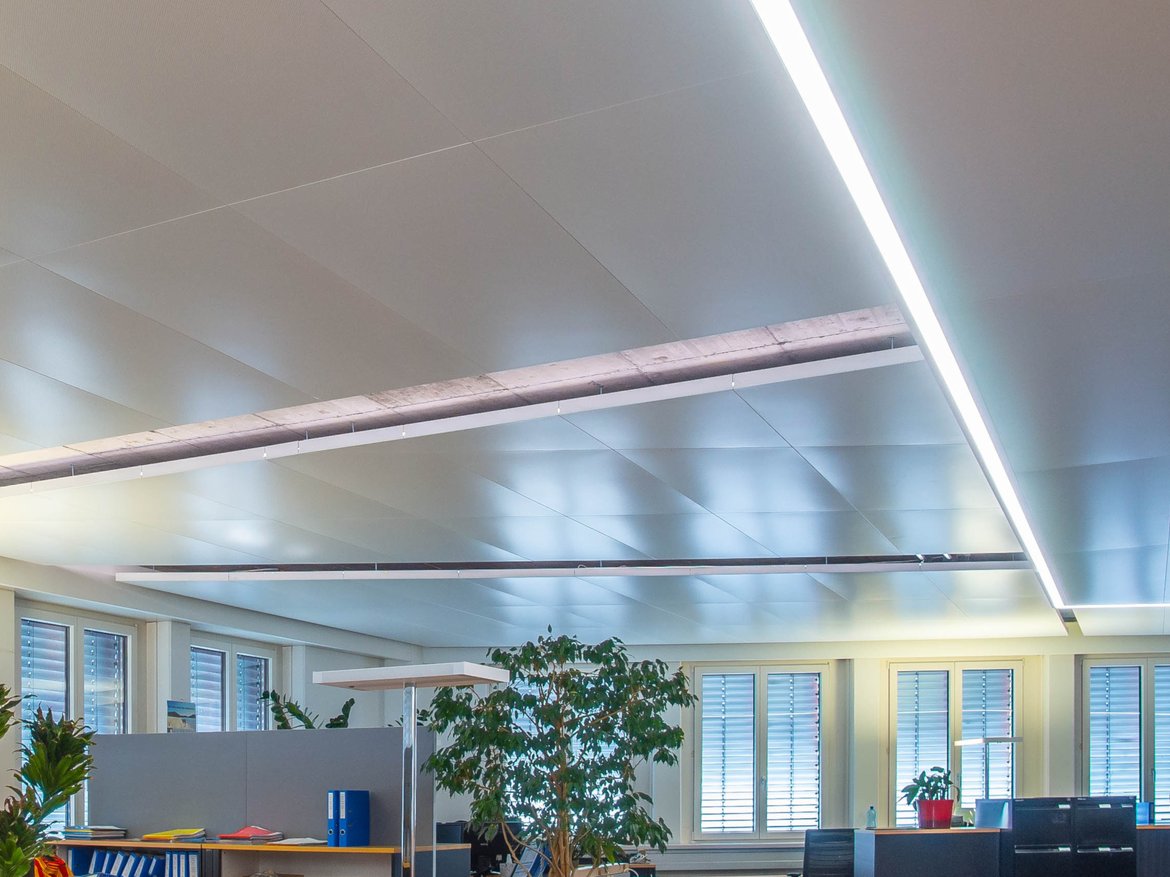

CAURUS Hybrid system with building mass connection
Thanks to its comprehensive functionality, the CAURUS hybrid system with the A11-S or SPECTRA M-S radiant ceiling sails achieves an optimum room climate in any environment. This combination has very high heating and cooling capacities, convenient supply air ducting and very good acoustic properties.
Using the thermally active building system principle, this radiant ceiling system incorporates the storage mass for dissipating heating loads into the overall room thermal concept. This can significantly reduce operating costs and CO2 emissions.
Using the thermally active building system principle, this radiant ceiling system incorporates the storage mass for dissipating heating loads into the overall room thermal concept. This can significantly reduce operating costs and CO2 emissions.
Contact us
- In combination with A11-S, SPECTRA M-S
- Very high heating & cooling capacity
- Active area ratio: 85 %
- Superior sound absorption values (class A)
- Building mass connection
- Integrated cross-talk sound attenuation
- Low construction height
- Sound power level Lw: < 30 dB (A)
- Fresh air intake is silent and draught-free
- Easy to combine with different lighting designs as well as other ceiling fixtures such as sprinklers and smoke detectors
System combinations
+ A11-S
+ SPECTRA M-S
+ VARICOOL TKM
+ SPECTRA M-S
+ VARICOOL TKM
Ceiling system
Sail

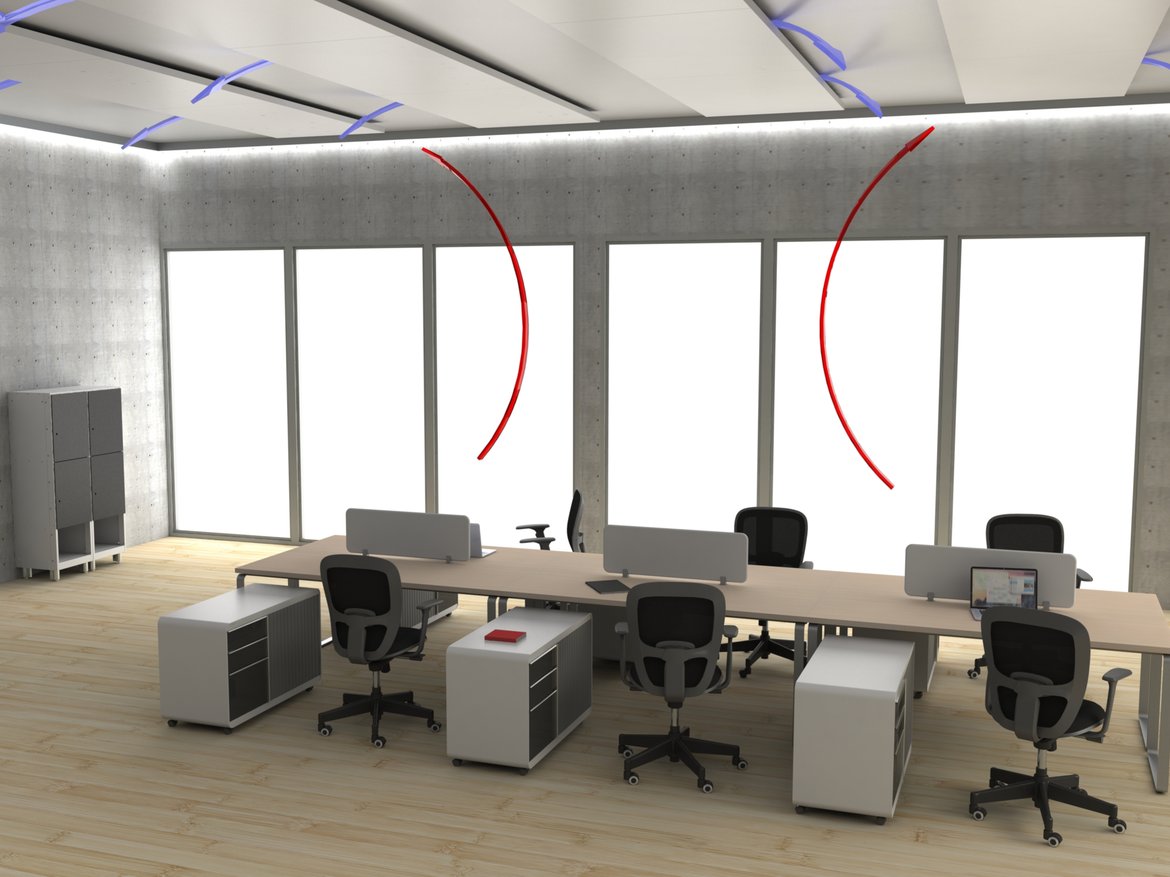

Operation principle
Radiation / Convection
Air supply
not visible
Capacity (water)
- Mass storage capacity: up to 20 W/m² panel area
A11-S, SPECTRA M-S
- Cooling: up to 125 W/m² (ΔT: 8 K)
Active area ratio: 85 %
- Heating: up to 117 W/m² (ΔT: 15 K)
- With flowing supply air, there will be a 20 to 40 % higher heating capacity.
Acoustics
αw: up to 0,95
Sound absorption class A
(EN ISO 11654)
Room comfort
Thermal comfort according to
EN ISO 7730, SIA 382/1
Functions
