Sustainability meets design
VARICOOL TKM Textile hybrid system

The VARICOOL TKM jointless hybrid system is a water-based radiant ceiling system. In conjunction with the CAURUS hybrid system, it guarantees an optimum room climate in any environment. This combination has very high heating and cooling capacities, convenient supply air ducting and superior acoustic properties. In addition, the system incorporates the storage mass for dissipating heat loads into the overall room thermal concept using the thermally active building system principle. This further reduces energy requirements and operating costs.

  • In combination with CAURUS
  • Very high heating & cooling capacity
  • Advanced sound absorption values (class B)
  • Building mass connection
  • Fresh air intake is silent and draught-free
  • Components can be integrated
Contact us

System combination

+ CAURUS

Ceiling system

Closed and sail

Operating principle

Radiation

Air supply

not visible

Capacity (water)

Cooling (EN 14240:2004):
- up to 95 w/m² (8 K)
Heating (EN 14037:2016):
- up to 103 w/m² (15 K)

Acoustics

αw: up to 0,80
Sound absorption class B
(EN ISO 11654)

Room comfort

Thermal comfort according to
EN ISO 7730, SIA 382/1

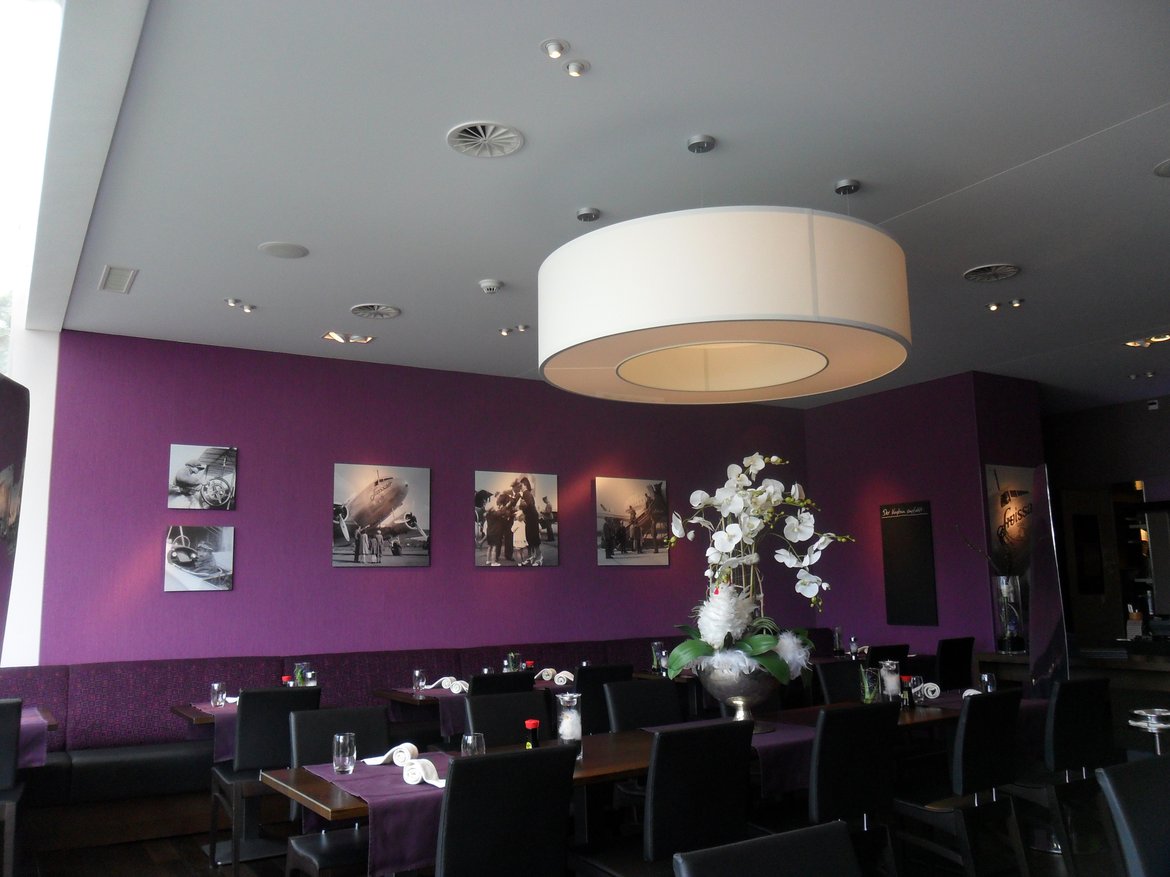

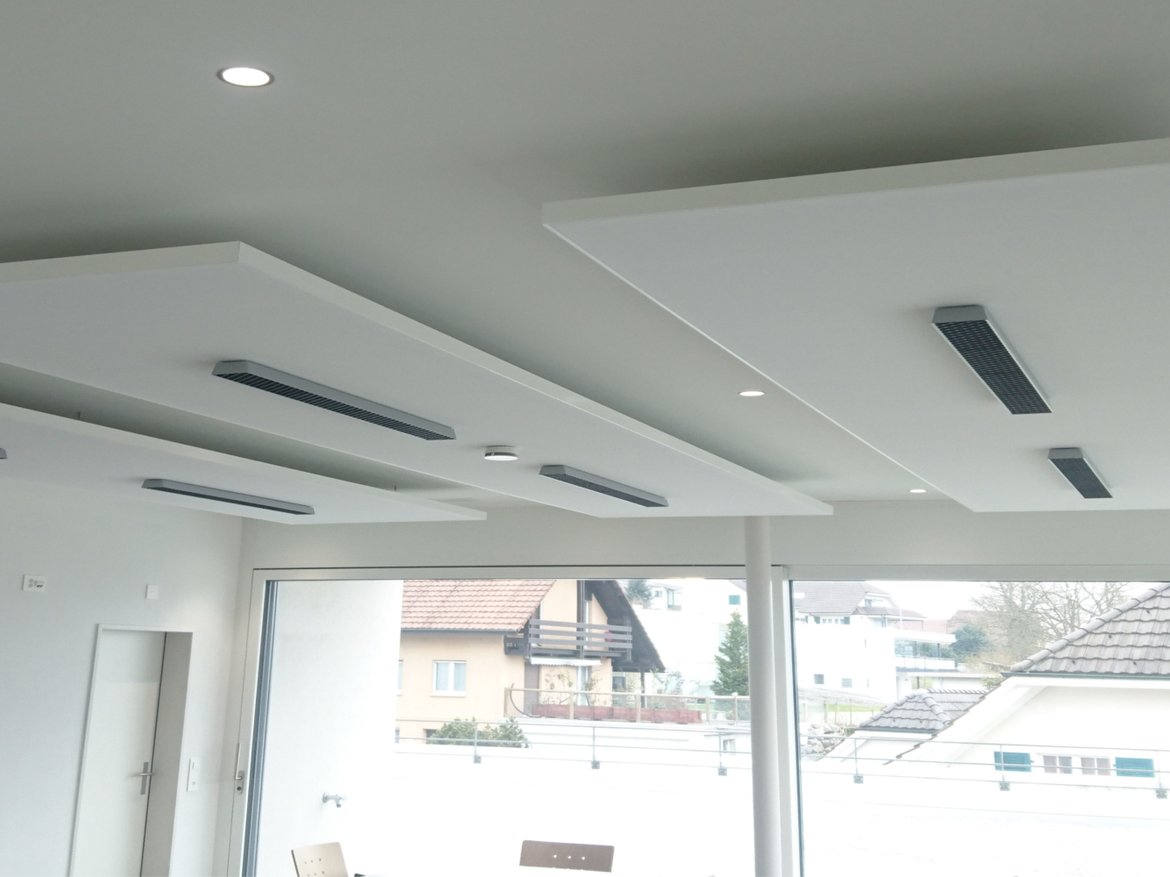

Reference objects with this product
