DLF

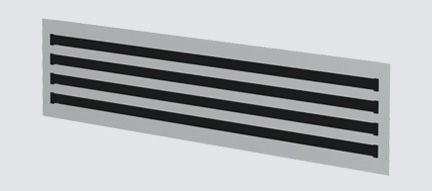

Linear Slot Diffuser
Due to their high induction effect, linear slot diffusers perform the rapid, effective mixing of supply air and room air and allow high air exchange and draught-free air discharge, especially in cooling operation where there is a large difference between supply air and room temperature. The diffuser is suitable for ceiling or wall installation.
Characteristic features of diffusers:
Questions about the product
- Linear discharge direction
- Adjustable deflectors
- Designed for large temperature differences
- Induction speeds up temperature compensation for short throw
- Constant discharge pattern even with large air volume changes, therefore ideally suitable for VAV systems
- Models available for ceiling and wall installation
- Low pressure drop and low noise data
Product group
Air Diffusers
Type
Slot Diffusers
Article
DLF
Linear Slot Diffuser
Volumetric flow
85 - 820 m3/h
Design
Linear slot diffuser made of extruded aluminium for large air volumes with adjustable deflectors, exterior insulated pressure reduction box with side connecting nozzle. Diffuser front and plenum box are supplied in assembled state. Diffuser front removable by screws accessible from the front.
Versions
- DLF/1D for supply air with 1 slot/deflector
- DLF/2D for supply air with 2 slots/deflectors
- DLF/3D for supply air with 3 slots/deflectors
- DLF/4D for supply air with 4 slots/deflectors
