S432

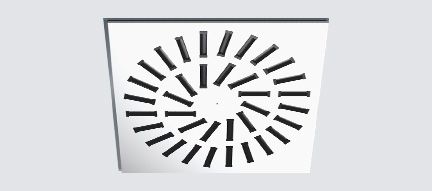

Swirl Diffuser
Due to their high induction effect, swirl diffusers perform the rapid, effective mixing of supply air and room air and allow high air exchange and draught-free air discharge, especially in cooling operation where there is a large difference between supply air and room temperature. Blade adjustment is fixed. The diffuser is suitable for flush ceiling installation, surface ceiling mounting or visible mounting.
Characteristic features of diffusers:
Questions about the product
- Radial/tangential air discharge direction
- Circular arranged slots in several rows
- Designed for large temperature differences
- High induction speeds up temperature compensation for short throw
- Constant discharge pattern even with large air volume changes, therefore ideally suitable for VAV systems
- Design for supply and return air
- Models available for ceiling mounting and flush ceiling installation (module panel)
- Low pressure drop and low noise data
Product group
Air Diffusers
Type
Swirl Diffusers
Article
S432
Swirl Diffuser
Volumetric flow
450 - 990 m3/h
Design
Ceiling diffuser made of sheet steel with circular arranged slots in several rows, exterior insulated pressure reduction box with side connecting nozzle and air volume adjustment. Diffuser and pressure reduction box are delivered in assembled state. Removable face.
Versions
- S432C for supply air with round front element
- S432DR for supply air with square front element
- S432PM for supply air in module panel 595 x 595 mm
