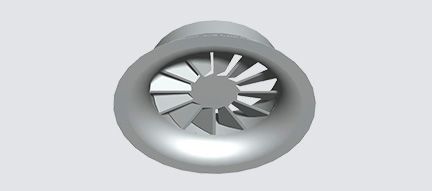

R43
Swirl Diffuser
Due to their high induction effect, swirl diffusers perform the rapid, effective mixing of supply air and room air and allow high air exchange and draught-free air discharge, especially in cooling operation where there is a large difference between supply air and room temperature. Blade adjustment is fixed. The diffuser is suitable for flush ceiling installation, surface ceiling mounting or visible mounting.
Characteristic features of diffusers:
Questions about the product
- Radial air discharge direction
- Fixed blades
- Designed for large temperature differences
- High induction speeds up temperature compensation for short throw
- Constant discharge pattern even with large air volume changes, therefore ideally suitable for VAV systems
- Models available for ceiling mounting and flush ceiling installation (module panel)
- Low pressure drop and low noise data
Product group
Air Diffusers
Type
Swirl Diffusers
Article
R43
Swirl Diffuser
Volumetric flow
35 - 1200 m3/h
Design
Swirl diffuser made sheet steel for large air flows with adjustable, radial blades and round front panel, with exterior insulated pressure reduction box with side connecting nozzle and air volume adjustment. Swirl diffuser and pressure reduction box are delivered in assembled state. Face removable by means of central screw.
Versions
- R43 for supply air with round front element
- R43Q for supply air with square front element
- R43K for supply air in module panel 595 x 595 mm
