Perfectly integrated
AQUILO Hybrid system with building mass connection

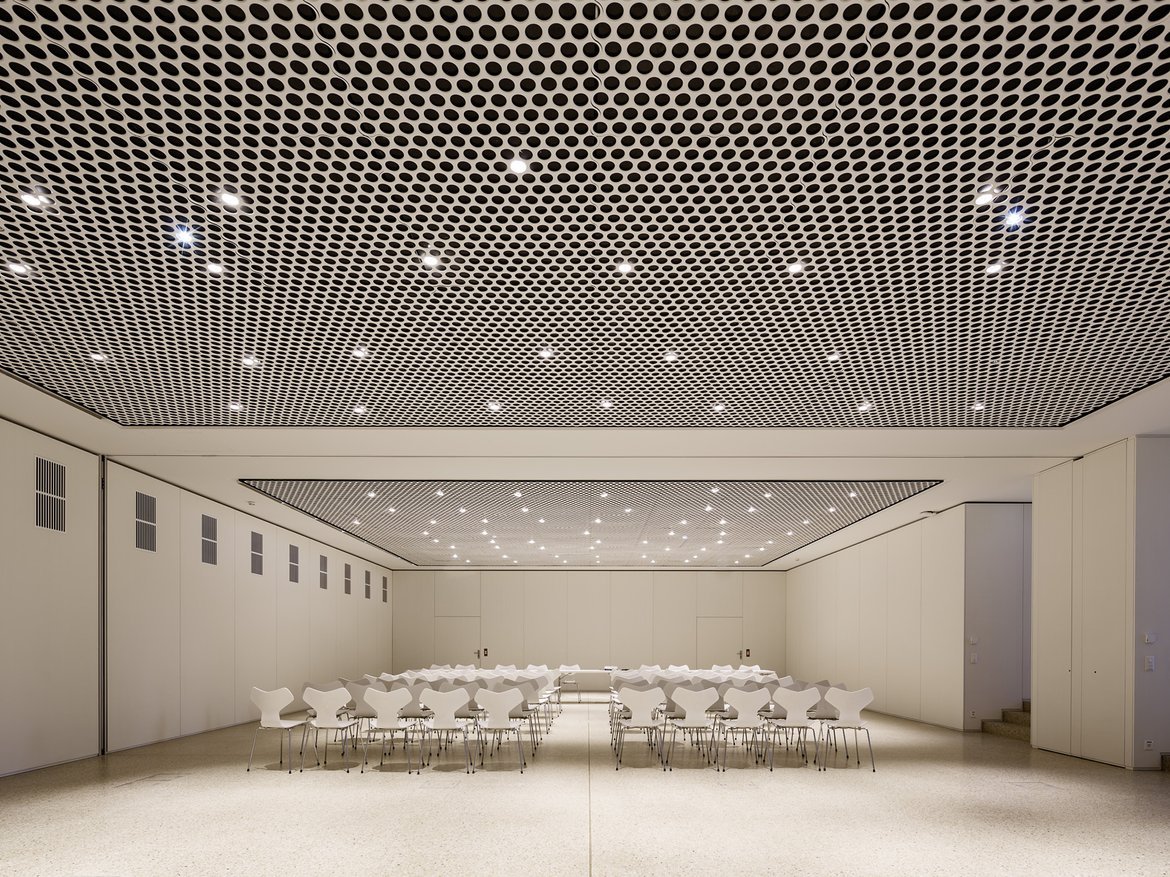

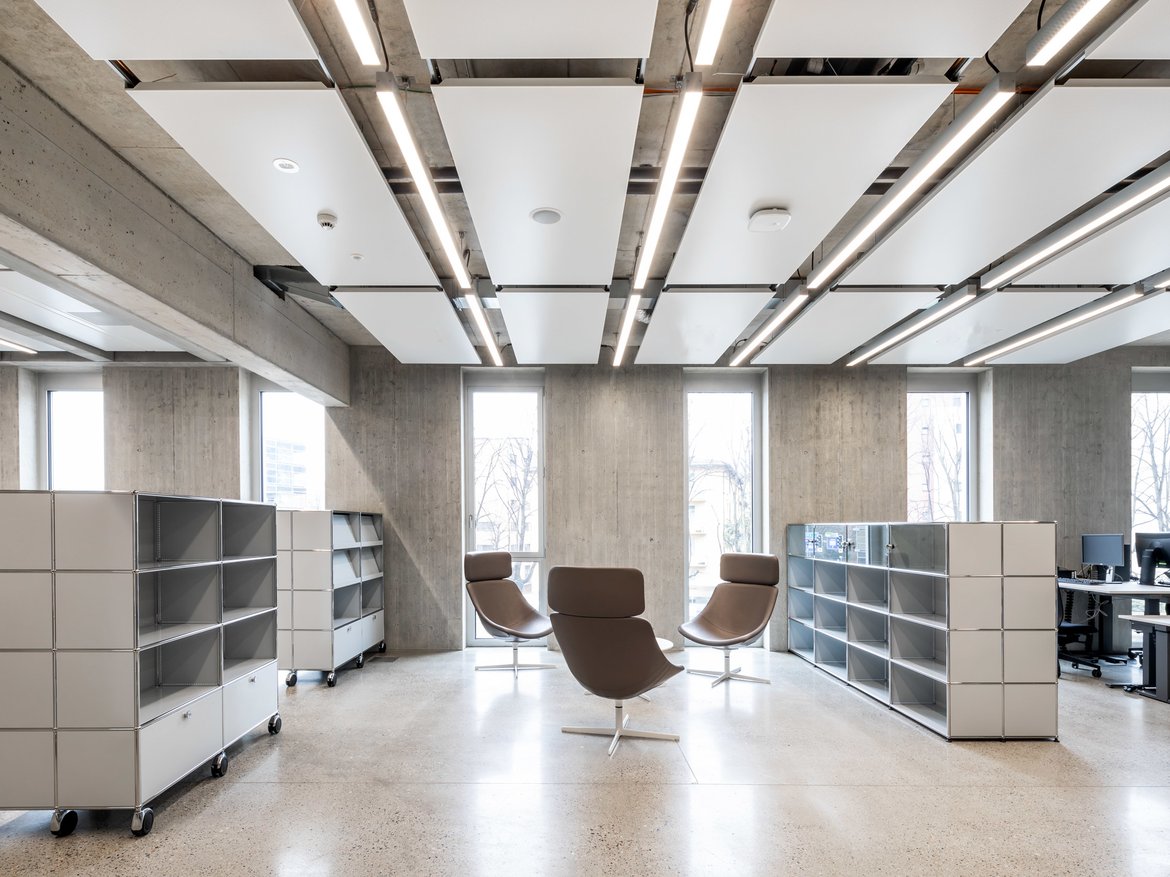

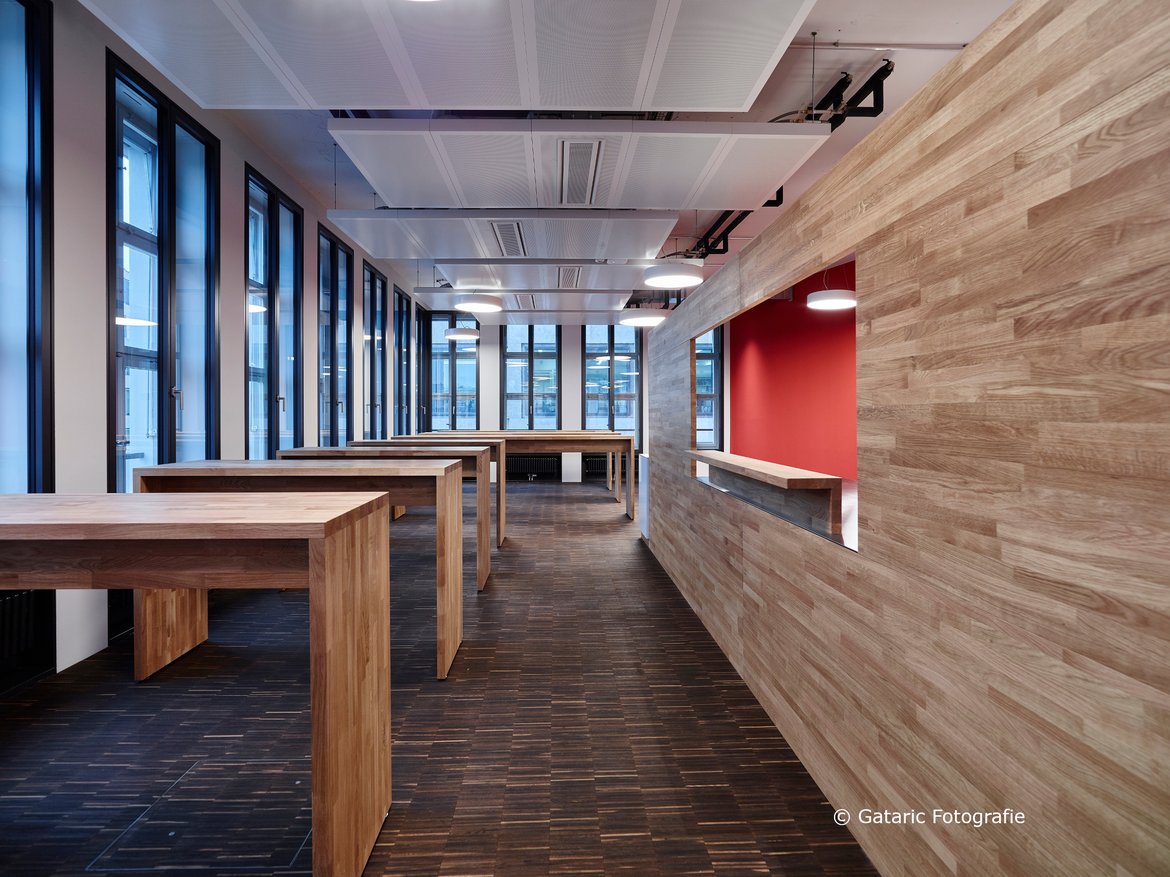

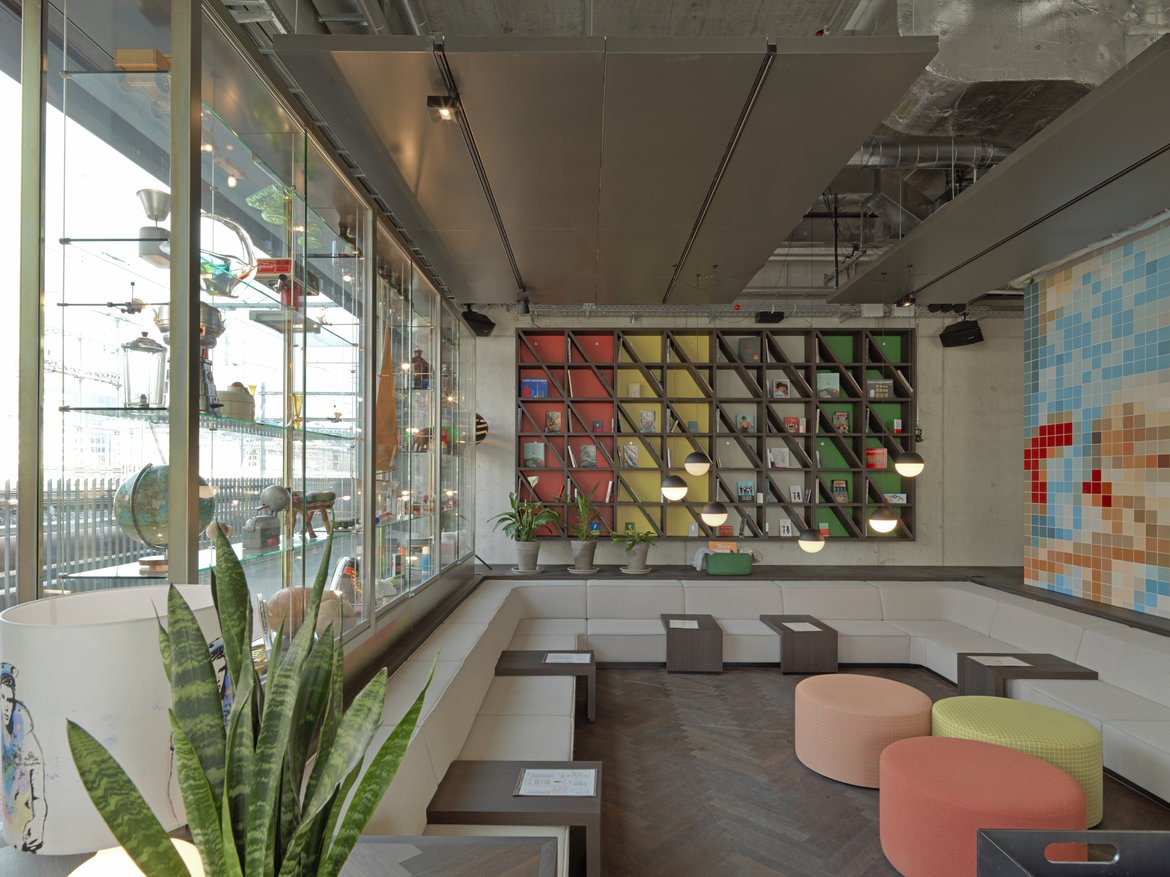

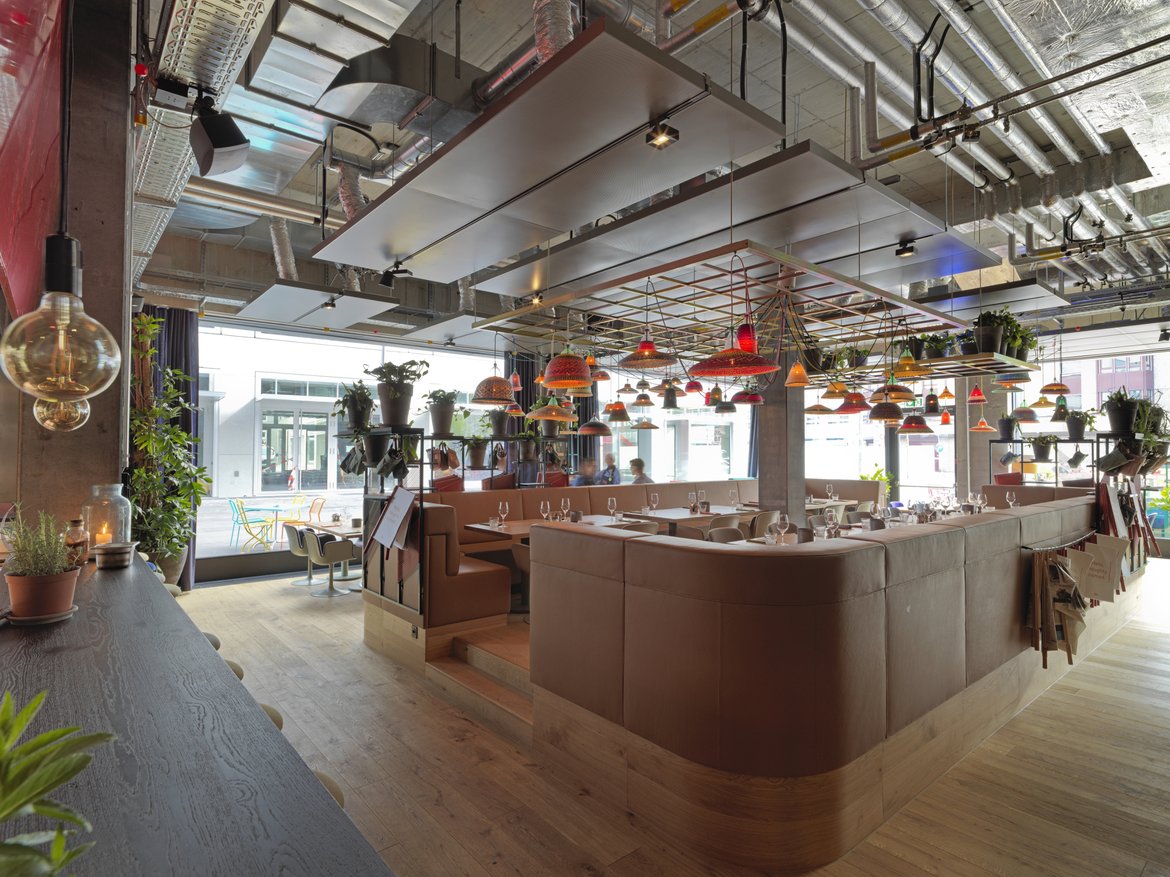

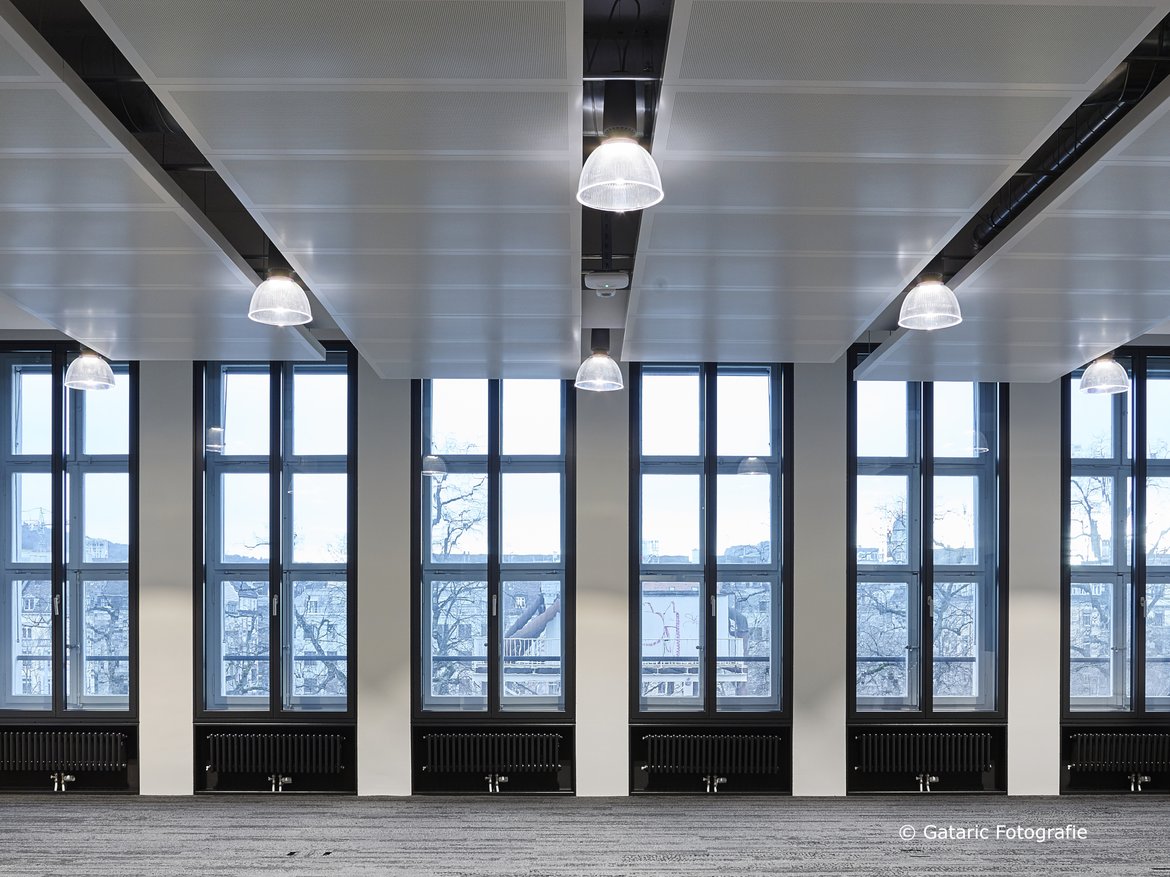

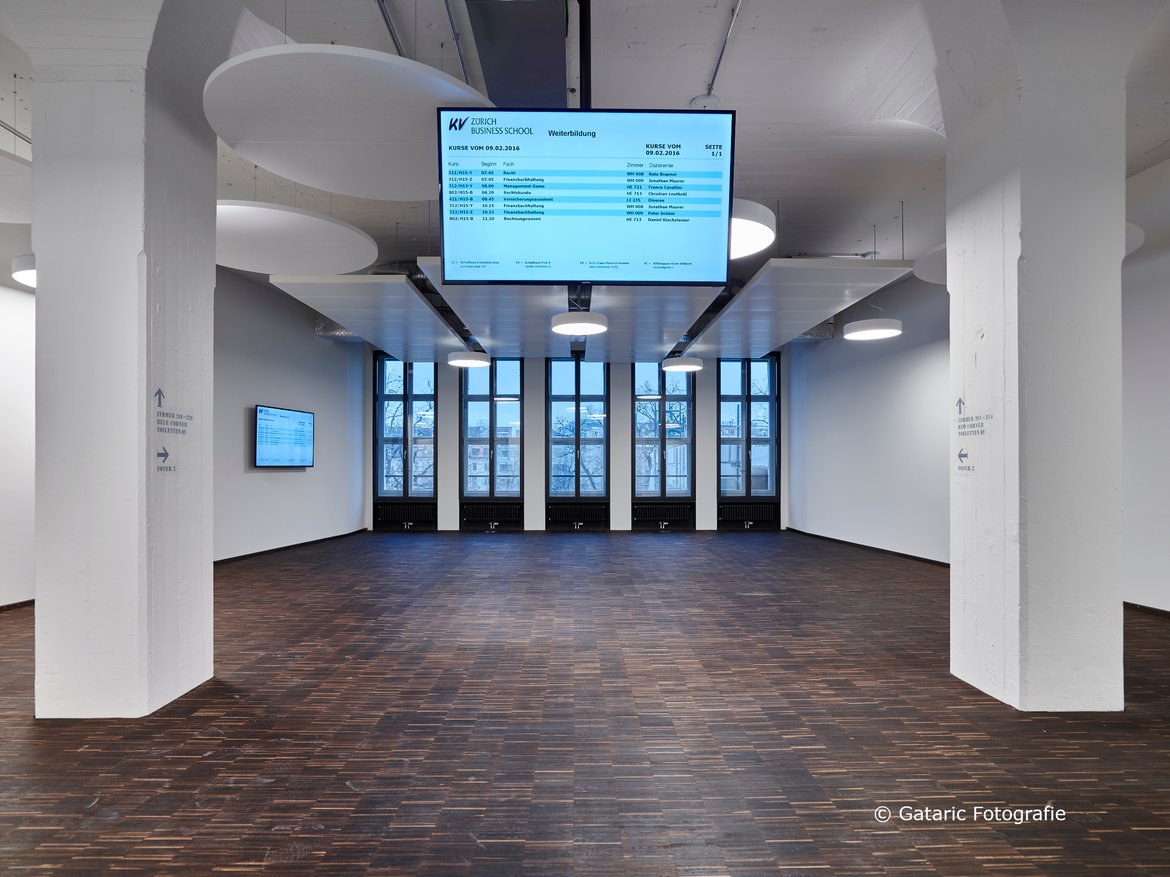

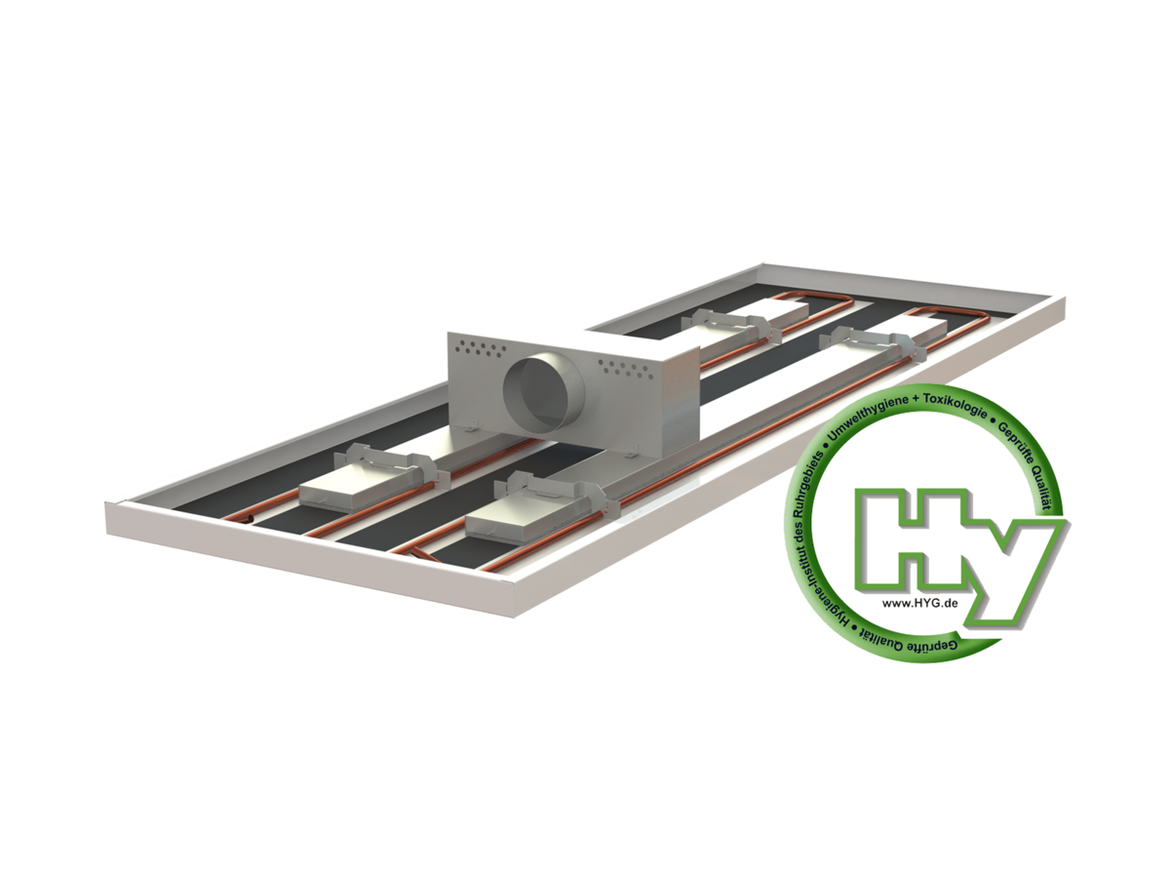

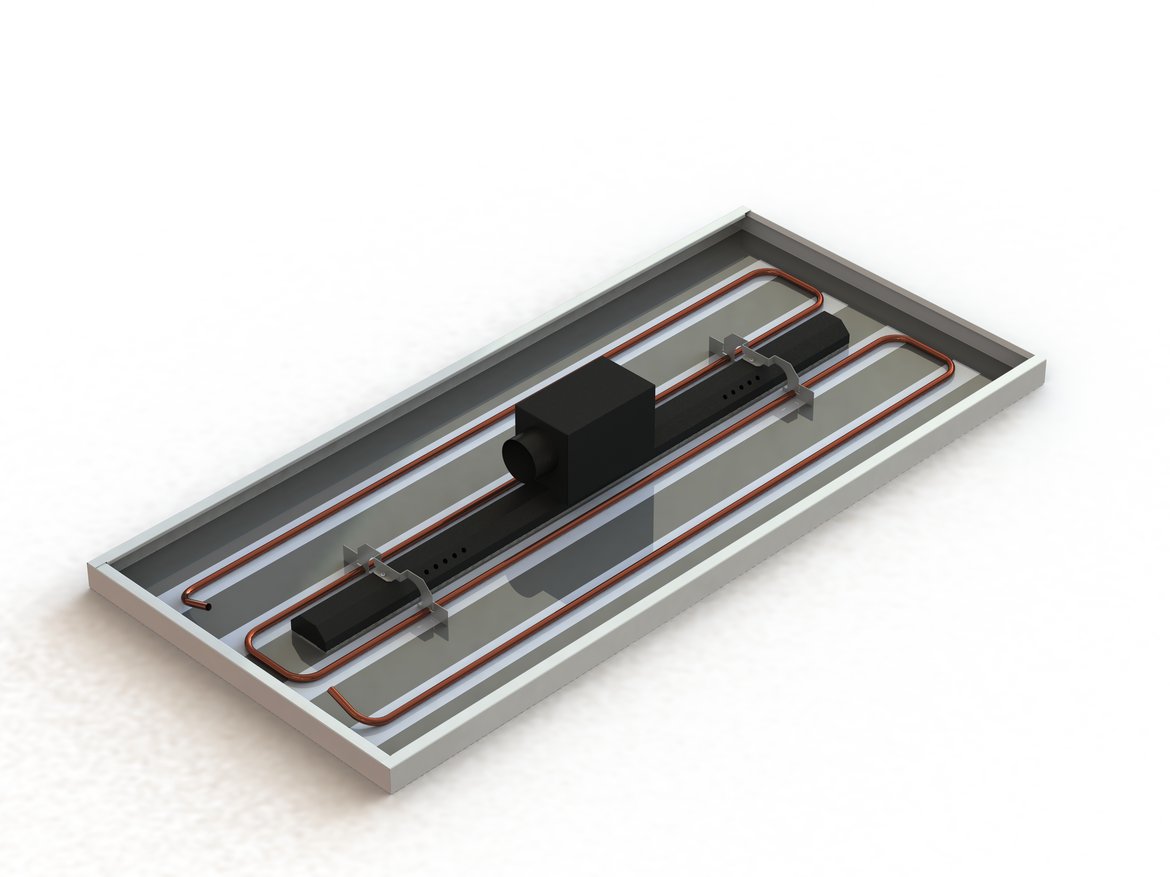

AQUILO + the A11 or SPECTRA M radiant ceiling system are highly efficient radiant ceiling systems with integrated supply air and superior acoustic effectiveness. The integrated supply air element delivers highly effective ventilation results. At the same time, the supply air jet on the back of the ceiling panel increases the convective capacity, which supports the heating and cooling effect in the room without a risk of draughts.
The AQUILO hybrid system with A11-C and SPECTRA M-C ceilings incorporate the storage mass for dissipating heating loads using the thermally active building system principle.
The A11-S sail allows the use of our specially developed Convector Wings to increase performance.
Contact us
- In combination with A11-S, A11-C, SPECTRA M-S, SPECTRA M-C
- Very high heating & cooling capacity
- Active area ratio radiant metal ceiling sail: 85 %
- Active area ratio radiant metal ceiling: 75 %
- Superior sound absorption values (class A)
- Building mass connection (A11-C, SPECTRA M-C)
- Sound power level Lw: < 25 dB (A)
- Fresh air intake is silent and draught-free thanks to ceiling panel perforations
- Components can be integrated
System combination
+ A11-S + ARCHISONIC®
+ A11-C + ARCHISONIC®
+ SPECTRA M-C, SPECTRA M-S
Ceiling system
Sail / closed
Operating principle
Radiation / Convection
Air supply
not visible
Capacity (water)
- Mass storage capacity:
Sail up to 10 W/m² panel area
Closed ceiling: up to 5 W/m² panel area - A11-S, SPECTRA M-S
Cooling: up to 122 W/m² (ΔT: 8 K)
Active area ratio: 85 %
Heating: up to 138 W/m² (ΔT: 15 K)
- A11-C, SPECTRA M-C
Cooling: up to 114 W/m² (ΔT: 8 K)
Active area ratio: 75 %
Heating: up to 113 W/m² (ΔT: 15 K)
Acoustics
αw: up to 0,90
Sound absorption class A
(EN ISO 11654)
Room comfort
Thermal comfort according to
EN ISO 7730, SIA 382/1
